UC-Draw Ver.7
Applys specifications For Highway Bridges, 2012.
2D general CAD for civil engineering

Price● (New)US$1,580 (Version Up)US$110
Release● Jun, 2012
UC-1
CALS/CAD

Introduction
UC-Draw is 2D general-purpose CAD that enables a flexible, efficient drawing creation which has abundant drawings, edits, and the viewing commands and also installs the generation function etc. of the bar arrangement drawing, the processing chart, and the reinforcement table as CAD for engineering works.

This time, specifications for highway bridges (March, 2012) are released to the public. "Addition of the reinforced concrete material" and "Bent radius of the reinforced steel" are revised. UC-Draw Ver.7 ( Ver.7.1.0 ) in which "Supports revised specifications for highway bridges of generation function of the processing chart and the reinforced steel table" and "Enhance of the drawing function" is performed in UC-Draw will be released.
Supports specifications for highway bridge in 2012
In specifications for highway bridges (March, 2012), Reinforced steel material "SD390,SD490" has been added and "Bend internal radius of the reinforced steel" has been revised as follows.

Sign Hook Stirrup and tie hoop
SR235
SD295 2.5Φ
SD345 2.5Φ

Sing Hook Other than hook Delete round steel ( SR235 ) and delete the classification of stirrup / tie hoop
SD345 2.5Φ 2.0Φ
SD390 3.0Φ 2.5Φ Add
SD490 3.5Φ 3.0Φ

The function of setting for standard value of "SD390,SD490" is prepared for "Generation reinforced steel function of the processing chart and the table" in UC-Draw and it supports the processing chart drawing and the calculation of the length of the reinforced steel of the regulated bend radius.

画像をクリックすると大きな画像が表示されます。

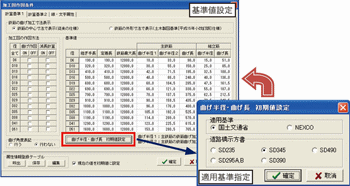

■Figure 1 Screen of processing drawing condition
Drawing function has been enhanced.
The following drawing functions have been enhanced.

Bar arrangement function
Supports the edit function (add and delete reinforced line) of several straight leader lines drawn from the several reinforced bars drawn in bar arrangement drawing.

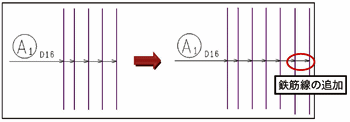

■Figure 2  Example of edit reinforced leader line

Generation function for processing chart and reinforced steel table
The angle dimension drawn on the processing chart can be selected from "degree (°) " and "degree, minute and second (°'")".

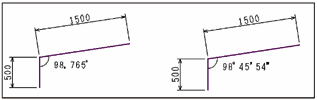

■Figure 3 Enhancing of angle dimension signage

Drawing function
Generation function for road standard crossing chart is supported.

Input function
Memory capacity when importing DXF,DWG can be deleted and drawing of large capacity can be imported.

Output function
Supports output function into TIFF file.

画像をクリックすると大きな画像が表示されます。

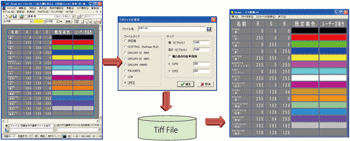

■Figure 4 Output expansion(output Tiff file)
Finally
We will take the opinion and demand from customers and try to our best to improve UC-Draw so that it could be a helpful product for your business.
