vol.20
 Academy Users Report


Graduate School of Engineering, Hokkaido University
Laboratory of (Hagiwara) Advanced
Mobility and Transportation Engineering,
Division of Engineering and Policy
for Sustainable Environment,

Emphasis on Research and Development of Driver Behavior Mainly on Visibility and Infrastructure in Relation with It
Applying UC-win/Road DS to Study Based on a Hard Look at Automated Driving Society, Capable of Reproducing Winter Road Surface with VR

Laboratory of (Hagiwara) Advanced
Mobility and Transportation Engineering,
Division of Engineering and Policy
for Sustainable Environment, Graduate School
of Engineering, Hokkaido University,
URL: http://www.eng.hokudai.ac.jp/labo/kyoku/
Location: Kita-ku, Sapporo
Research and development contents: Transportation planning, traffic engineering, and civil engineering based on driver behavior

This time, we interviewed Professor Toru Hagiwara, Division of Engineering and Policy for Sustainable Environment, Graduate School of Engineering, Hokkaido University.

He says that it is a better choice to use VR in the present situation where it is not allowed to perform experiments using vehicles to realize automated driving by having them travel on actual roads. Currently, he is trying to represent the driver behavior in using automated driving vehicle on the roads in winter, in the research efforts that received grants from "2017 technology research and development contributing to improvement in quality of road policies" by Road Bureau, Ministry of Land, Infrastructure, Transport and Tourism (MLIT) .

He has been studying a wide range of subjects related to driver behavior with focus on the driver's visibility for many years. He was mainly adopting an approach of measuring driver behavior in the field using actual vehicles. However, the research, which started 2 years ago with the above grants, required experiments predicated on the technologies that are to be put into practice and spreading in the near future. To perform them, there were a great deal of constraints in the conventional approaches.

The vehicle types that can be operated by automated driving are very limited (yet at present). Moreover, it is not allowed to have a person drive them in risky situations (on the actual road). In contrast, VR enables us to create the specified conditions and see "what will become of this" or "what kind of things we should do" through trial and error. Therefore, we chose VR as an only way to solve this challenge.

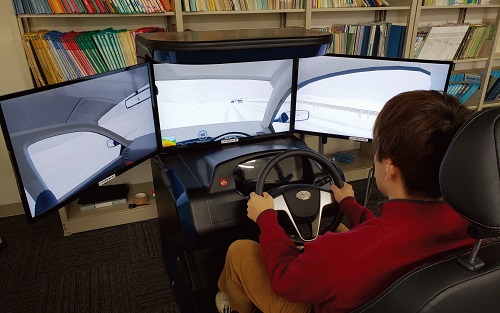

From such a standpoint, Professor Hagiwara assumed utilization of VR at the stage of application to the research. After the application was adopted by MLIT, he started using the driving simulator (DS) based on the three-dimensional (3D) real-time VR of FORUM8, "UC-win/Road", which many of his colleague researchers he had already known and collaborating researchers in the concerned research had introduced.

Professor Toru Hagiwara,
Division of Engineering and Policy for Sustainable Environment,
Graduate School of Engineering, Hokkaido University

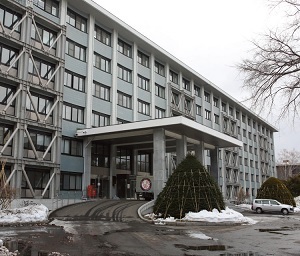

Hokkaido University Boasting of Its History of More Than 140 Years, Positioning of Laboratory

Though the snowfall seems to be less than the average year, there is a long wall of snow left unmelt on the both sides of the main street around JR Sapporo Station in the beginning of March. Close to the Station is located "Laboratory of (Hagiwara) Advanced Mobility and Transportation Engineering" in Sapporo campus of Hokkaido University, where we visited.

The origin of Hokkaido University goes back to Sapporo Agricultural College founded in 1876. After more than 140 years, the Univ. is now organized by 12 Undergraduate Schools (Faculty of Letters, School of Law, School of Science, School of Dental Medicine, Faculty of Engineering/School of Engineering, School of Veterinary Medicine, Faculty of Education/School of Education, School of Economics and Business, School of Medicine, School of Pharmaceutical Sciences and Pharmacy, School of Agriculture, School of Fisheries Science) and 24 Graduate Schools. More than 18,000 students of undergraduate and graduate schools are learning in total (as of April 2018) in 2 campuses of Sapporo and Hakodate that are the base for education and research.

Among them, Graduate School of Engineering to which Hagiwara Lab belongs covers 13 Divisions and 37 Research Groups. These Divisions are: Applied Physics, Applied Chemistry, Materials Science and Engineering, Mechanical and Space Engineering, Human Mechanical Systems and Design, Energy and Environmental Systems, Quantum Science and Engineering, Field Engineering for the Environment, Engineering and Policy for Sustainable Environment, Architectural and Structural Design, Human Environmental Systems, Environmental Engineering, and Sustainable Resources Engineering. Divisions of Engineering and Policy for Sustainable Environment is divided into Research Group of Engineering for Sustainable Infrastructure System and Research Group of Policy for Engineering and Environment. Hagiwara Lab. is included in the latter.



 Expanding from Focus on Driver Behavior to Most Recent Automated Driving

Based on researches related to driver behavior and visibility in particular, Hagiwara Lab. is working on research and development contributing to society in the fields ranging from transportation planning to traffic engineering, social / safety system science, and civil engineering. An idea of aiming at preventing traffic accidents from deferent angles is common to all researches of the Lab.

Professor Hagiwara's focus on driver behavior dates back to about 30 years when he worked on research related to the driver's gaze point behavior for doctor thesis. Later, he came to study on "what the driver sees and thinks, what kind of actions he takes, and what result occurs", with a focus on "traffic accidents caused by the driver's mistake", which raises a problem in particular. He has been striving for research and development of countermeasures and technologies for drivers not to make mistakes. In recent years, according to him, while efforts on automated driving are progressing, the performance of the vehicle itself is certainly improving, but the main part of controlling a vehicle is gradually shifted from the driver to the machine as well.

"This is now what is going to change most. The latest researches tend to be like this (as mentioned at the opening)."

It was about 5 years ago when he added automated driving to his research subjects. Since then, for automated driving that is likely to become the main stream more than ever, he has been exploring about "what should be done" from the viewpoint of producing road infrastructure, rather than that of the system side of automated driving, in relation to driver behavior.

As his most recent main efforts, Prof. Hagiwara mentions two researches that received grants from "2017 technology research and development contributing to improvement in quality of road policies" by Road Bureau, MLIT.

One of them is "Research and development regarding pro-beam road lighting in the urban area" with traffic accident countermeasure as the policy area (research representative: Prof. Hagiwara, research period: 3 years from 2016 to 2018 fiscal year). This focused on a countermeasure to allow the driver to discover a crossing pedestrian earlier in order to prevent accidents of crossing pedestrians on the streets at night. In this research, "Pro-beam road lighting" was developed for streets, which was expected to use to discover crossing pedestrians earlier by radiating light in the direction of the vehicle to cooperate with headlight in lighting.

Another is "Research and development regarding new road traffic policies to support production spaces utilizing automated driving and Michinoeki (roadside stations)" that corresponds to a specific issue ("Road infrastructure required to realize an automated driving society") (research representative: Mikiharu Arimura, Associate Professor, Muroran Institute of Technology, research period: 3 years from 2017 to 2019 fiscal year). This focused on "production space" to take charge of agriculture, forestry, fishery, and tourism in Hokkaido, where depopulation makes it difficult to maintain public transportation and commodity distribution. Aiming at the road traffic environment with which people can continue to live in the productive space, research and development is still going on about how the road traffic policies should be including implementation of use of automated driving and Michinoeki. In participating the research, Prof. Hagiwara has adopted UC-win/Road DS.

Besides, he also cooperates with groups outside the university, mainly including Hokkaido Regional Development Bureau of MLIT, East Nippon Expressway Co., Ltd. (NEXCO East), Central Nippon Expressway Co., Ltd. (NEXCO Central), West Nippon Expressway Co., Ltd. (NEXCO West), the Nippon Expressway Research Institute Co., Ltd. (NEXCO RI), Honshu-Shikoku Bridge Expressway Co., Ltd. (HSBE). They have been performing joint researches, for example, on what kind of road and tunnel illumination are easy to see at night etc. considering visibility for drivers.

Road Conditions when the Driver Overrides the Speed Coordinate System
on the Highway in Winter

■Investigation method
Date: February 5th-7th, 2018
Place: Abashiri and Ozora in Hokkaido (Figure 1)
(Start point: Abashiri Development and Construction Department, Hokkaido Regional Development Bureau,
Ministry of Land, Infrastructure, Transport and Tourism End point: Denso Test Center Distance: 25.5km)
Road linear: Curves, gradient, bridges, traffic signals, right/left turn

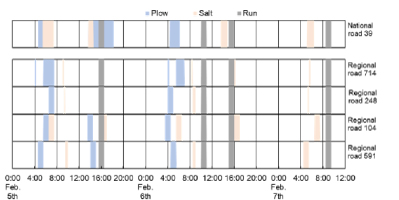

Road surface management during field investigation: Create table that explains how much snow has been removed
from each road and the antifreeze distribution on each road (figure 2).

画像をクリックすると大きな画像が表示されます。 画像をクリックすると大きな画像が表示されます。

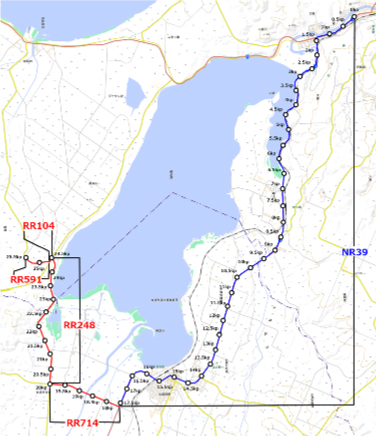

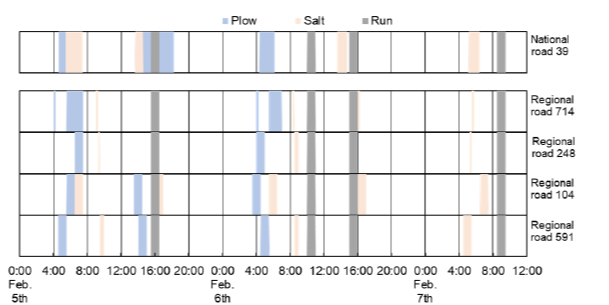

Fig.1 Driving course Fig.2 Status of snow removal and distribution of antifreeze fluid

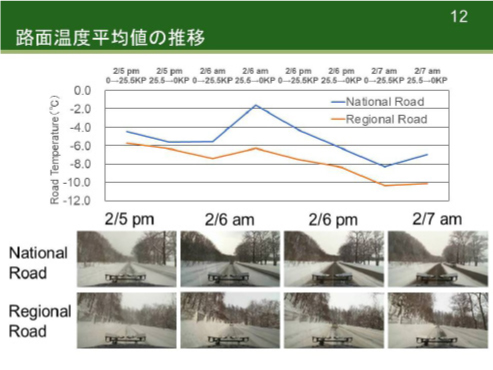

■Test result
画像をクリックすると大きな画像が表示されます。 画像をクリックすると大きな画像が表示されます。

■Conclusion
Driver intervention into the autonomous driving system
on winter road is easy to occur in the following situations:

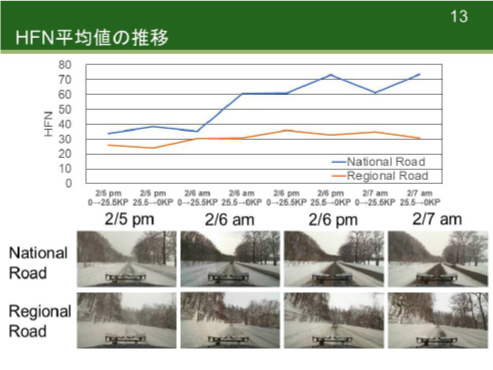

  • Halliday Friction Number (HFN) is low.
  • Road linear such as curve and slope is severe.
Cooperation of both road maintenance
in winter and autonomous driving system
is important.


 UC-win/Road DS Adopted for Examining Driver Behavior Using ACC in Winter

In the research on automated driving Prof. Hagiwara started about 5 years ago, the similar approach was taken as before, measuring driver behavior in the field. On the contrary, in participating the technological research and development granted by Road Bureau, MLIT, "Research and development regarding new road traffic policies to support production spaces utilizing automated driving and Michinoeki (roadside stations)" which was launched in fiscal 2017, it was assumed to utilize VR technology. As the aim of this, he mentions 2 points: 1) When the actual vehicle travels in the fields, it is impossible to set the same experimental conditions every time. On the contrary, as the reproducibility of experimental conditions and automated driving is high with VR, it is possible to make comparison under the same conditions; 2) Even if there is a situation in which a collision occurs in VR, realistic danger does not accompany it.

"(In this research) we tried to deal with winter (i.e. perform experiments in the road environment of the winter season, when there are not a few factors that makes driving difficult, for example, frozen road surface and poor visibility). Thus, we decided to utilize VR because it was hard to create the same condition every time, for example, "slipping on the road surface" (in the field).

Consequently, in applying for the technological research and development, Prof. Hagiwara assumed utilizing VR when he prepared for application in autumn 2016. The colleague researchers with whom he had been closely exchanging information so far and those researchers with whom he was going to cooperate for the concerned research told him that many of them were using UC-win/Road DS and advised him in a concerted tone saying, "If you work on VR in the Lab, (DS of) FORUM8 is the right thing, isn't it?". This made him pay attention to it. In addition, UC-win/Road DS was highly evaluated for its actual performance, as it was used by plural universities, research institutions, and companies, and many papers were found based on them. He decided to adopt it because its price was reasonable for its performance, according to him.

UC-win/Road DS is utilized for research on driver behavior with ACC in winter

Firstly, regarding the operation of the automated driving system in the road environment in the winter season, Prof. Hagiwara set the role of side of road as "communicating risk events undetectable by the sensing system of the automated driving system such as road surface or visibility conditions ahead to the automated driving system". This research examines "provision of information for the drivers who are using Adaptive Cruise Control (ACC) on expressways in the winter season to avoid in advance the risks caused by slippery road surface (low-μ road) ahead". Then he measured the difference between 1) driving after providing the driver with information about low-μ road ahead, and 2) driving after providing the driver with not only information about low-μ road ahead but also measures to deal with it. Experiments using DS were incorporated since it was impossible to reproduce such situations on actual roads.

In the first fiscal year of the 3 years of research period (fiscal 2017), 48 students of the Univ. took part in the research and conducted the experiments above. On the other hand, the results of the field experiments of another project that they worked on separately showed that the influence of not only the slipping on the road surface but also the road alignment was substantial. Therefore, in the second year (fiscal 2018), situations were changed to some extent from the previous fiscal year, and elements of road alignment were added to the design. 32 students took part in it and conducted experiments similarly.

Driver's Behavior Interaction with Adaptive Cruise Control on Snowy Road Conditions using Driving Simulator

■Investigation method

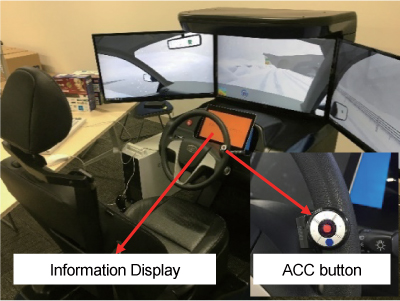

Experiment involving subjects to perform driving trials using UC-win/Road Drive Simulator
Road segment with winter road surface condition (Reproduce approximately 11km of road segment from Kanayama Parking Area to the entrance of Hariusu Tunnel along Sasson Expressway)
Driving scenarios and risk factors

画像をクリックすると大きな画像が表示されます。 画像をクリックすると大きな画像が表示されます。 画像をクリックすると大きな画像が表示されます。

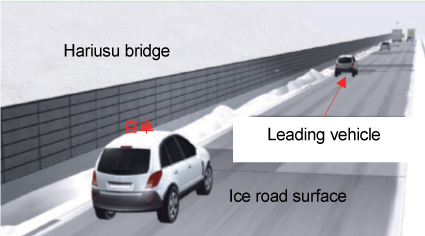

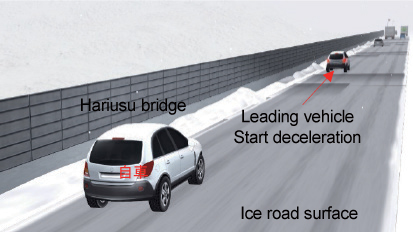

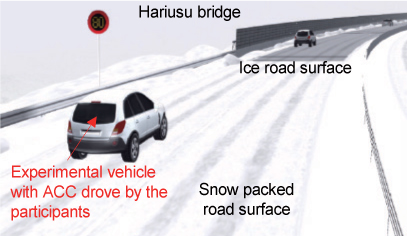

Frozen road surface on Hariusu Bridge is assigned as a risk factor. Texture different to compacted snow is assigned to the road surface on the bridge. This risk factor is trigged only during the 5th run by each subjects taking part in the driving simulation experiment. As part of the scenario, the leading vehicle starts decelerating on icy road surface.

■Conclusion
  • Based on both subjective assessment from drivers and the recordings of driver behaviour, it became clear that drivers selected ACC-OFF and slowed down to allow more space between themselves and the car ahead when warning of approaching road condition and instruction on specific driving operation were given to them.
  • On the other hand, it turns out that drivers who were fed with such information chose to turn off the ACC button not right after they were given such information but when they were able to see for themselves the icy road surface ahead.
  • It goes to show that warnings to drivers should informed enough to motivate drivers to take the necessary manuveurs to avoid danger. In addition, when information about approaching road condition is not fed to drivers, they were not able to detect the potential danger and therefore could not take any action to avoid the risk associated with the decelerating car ahead.



 Final Year of Research and Utilization of VR in the Future

"It was easy to reproduce a road with VR using UC-win/Road. It took only a short time to create a road close to the actual road."

To prepare VR used in the experiments, the Lab created the terrain data to be experimental environment, using UC-win/Road. FORUM8 staff provided support at any time by modifying the scenario a little or customize the function that was lacking in UC-win/Road. Then the Univ. made final adjustment of the experimental scenario. Through such process, he realized not only the advantage of UC-win/Road, of which "very useful in large part", but also its problems. Based on them, Prof. Hagiwara is planning to repeat experiments in the final fiscal year (fiscal 2019) using VR similarly to the previous fiscal year, changing the automated driving system a little.

"(In this research) we are using VR in order to understand the interaction between automated driving and the driver. Based on them, we would like to lead to the future, for example, develop better interface for automated driving, or improving the road so that drivers won't make errors."

(Written by Takashi Ikeno)
(Up&Coming '19 Spring issue)
