A solitary program for section calculation derived from Engineer's Studio®
Corresponding to the partial factor method in 2017 Specifications for Highway Bridges and the limit state in Specifications for Highway Bridges before 2012

Engineer's Studio® Section Ver.2

Initial Release: 2018.09.03 / Latest Ver.: 2021.10.25

USD2,800

Related Products/Services: Engineer's Studio®, Analysis Support Service

Program Overview

Engineer's Studio® Section allows users to verify sections and get OK/NG determination by giving specification contents and section forces to freely selected section shape. Sections and setting of specification can be imported in separately sold software Engineer's Studio®. The export from Engineer's Studio® to this product is also available.

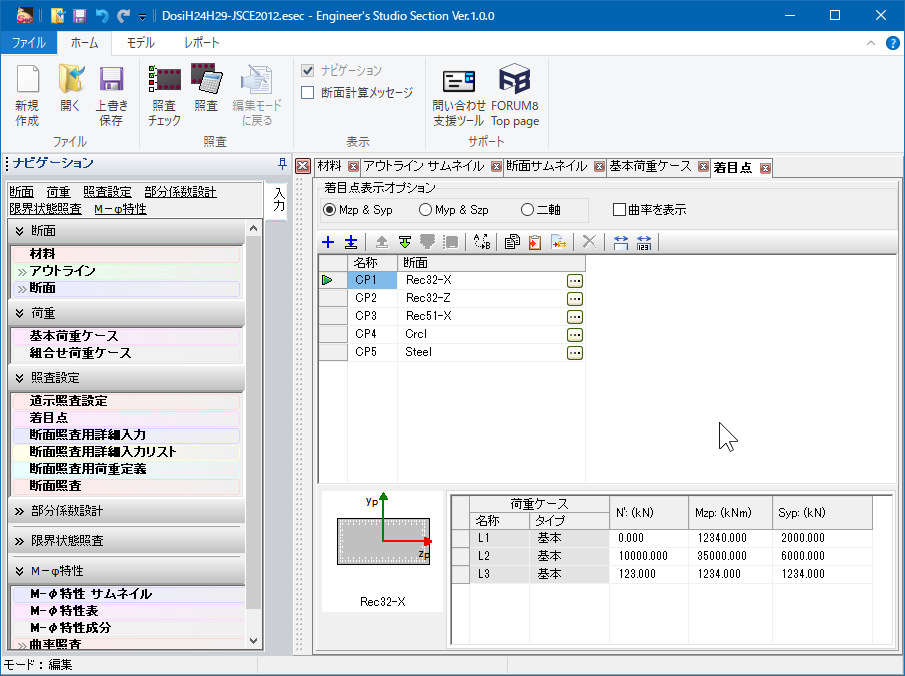

▲ Section shape setting

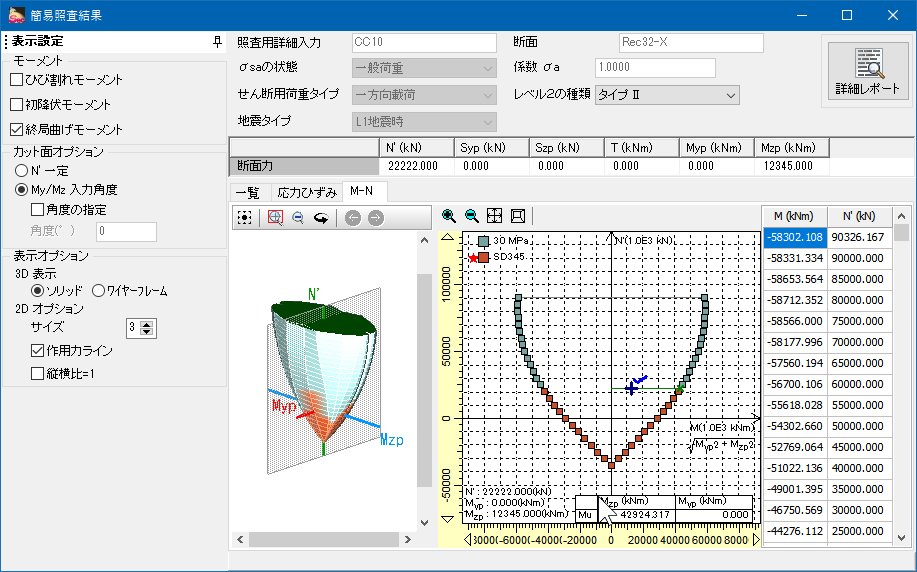

▲ The figure showing the interaction
between axis force and bending moment
(3D and 2D)

Ver.2.0.0 Revised Contents <Released on October 25th, 2021>

  • 64bit support
  • Support for report output of 2D graphs in M-N interaction diagrams on the simple verification results screen.
  • Support for decimal places in dimension values in section thumbnails.

Functions and Features

Verification items

The following verifications are corresponded.


■Road related specifications before 2002

  1. Bending stress check for RC material
  2. Shear stress check for RC material
  3. Bending strength check for RC material
  4. Shear strength check for RC material
  5. Bending strength check for steel pier
  6. Attachment stress
  7. Minimum number of rebar

■Limit state design method related specifications

  1. Concrete standard in 1996 [Design edition]
  2. Concrete standard in 2002 [Structure verification]
  3. Concrete standard in 2007 [Design edition]
  4. Concrete standard in 2012 [Design edition]
  5. Railroad structure design, concrete structure (Oct 1999)
  6. Railroad structure design, concrete structure (April 2004)

■Specifications for Highway Bridge 2017 (Partial factor design method)

  1. Bending stress check, Shear stress check, Bending strength check, and Shear strength check for RC/PC material
  2. Bending strength check for steel pier
  3. Minimum number of rebar

Input and output screen

■ Input screen


▲ Setting of specifications (ex. shear strength)

▲ Input screen of section force



■ The simple verification screen that can be called during input


▲ The figure showing the interaction
between axis force and bending moment
(3D and 2D)

▲ Verification result screen (summary table)

Price

Product Price

■Product Price

Product

Price

Engineer's Studio® Section Ver.2 USD2,800

■Price of Floating License

Paying 40% of the product price allows anyone to use the products on any PC anywhere in the world.

Product

Price

Engineer's Studio® Section Ver.2 USD1,120


>>Information of license type

Price of Subscription Service Contract


Price of Subscription Service Contract

■Support information
-Software upgrade   -Technical inquiry (Email, Tel)
-Download service   -Maintenance and update notifications via email

* We are sequentially making a transition from the maintenance-support service to [Subscription Service] from April 1, 2016 in order to enhance support for diverse product usage and to reduce license management cost.

Product Subscription cost
of first year
Subscription cost
of subsequent years
(annual cost)
Engineer's Studio® Section Ver.2 Free USD1,120
Engineer's Studio® Section Ver.2 Floating USD1,568

Price of Rental License / Floating License


■Rental license : Short term licenses available at a low price

■Rental floating license : After web activation, anyone can use the products on any PC anywhere in the world.

■Rental access : You can increase the number of licenses you own and use these additional licenses for a specific period of time (1 month to 3 month) at your discretion. We will later send you an invoice based on your usage log. The advance application is 15% off of the regular rental license price. Please place an order from User information page.

*Rental / Floating Licenses were introduced on September 2007 to enhance user experience and convenience of our products.

*Duration of Rental / Floating Licenses cannot be changed after starting these services. Re-application is required to extend the rental and floating license duration.

Rental license / Rental floating license

■Rental License

Product Name 2 month 3 month 6 month
Engineer's Studio® Section Ver.2 USD1,260 USD1,484 USD1,820

■Rental Floating License

Product Name 2 month 3 month 6 month
Engineer's Studio® Section Ver.2 USD2,100 USD2,492 USD3,080

Academic Price


An Academic License can be provided for educational purposes and used by teachers, lecturers, academic researchers, and students.

Academic Price

Product Academic Price
Engineer's Studio® Section Ver.2 USD2,240

Version Upgrade History


Version Upgrade History

 Engineer's Studio® Section
Version Released date Update contents
2.0.0 21/10/25
  • 64bit support
  • Support for report output of 2D graphs in M-N interaction diagrams
    on the simple verification results screen.
  • Support for decimal places in dimension values in section thumbnails.
1.0.0 18/09/03

New Release

Product Operation Environment


Product Operation Environment

OS Windows 8 / 8.1 / 10 / 11
CPU (Required) Intel Core 2 Duo 2.0GHz or greater CPU
(Recommended) Highest possible performance CPU (Ex. Core i7 series)
Required Memory (including OS) Greater than 4GB RAM is recommended (varies according to analysis models and analysis steps).
Required Disk Capacity Greater than 500 MB for installation.
The solver generates multiple intermediate files when the program is running. Sometimes small models require a few MB, and large models with many analysis steps require a total of tens of GB file.
Display (Image resolution) 1280 x 800 or greater, colour number is True Color (32 bit)
Please use a default setting for a property of the screen and normal size (96) for the DPI setting.
Extension for the input data esec
Linkage to other products < to import / export >
Engineer's Studio®
DXF/DWG section

Order / Contact Us


Order / Contact Us

If you have any question, please feel free to contact us via Sales inquiry or at ist@forum8.co.jp


>> Sales offices
