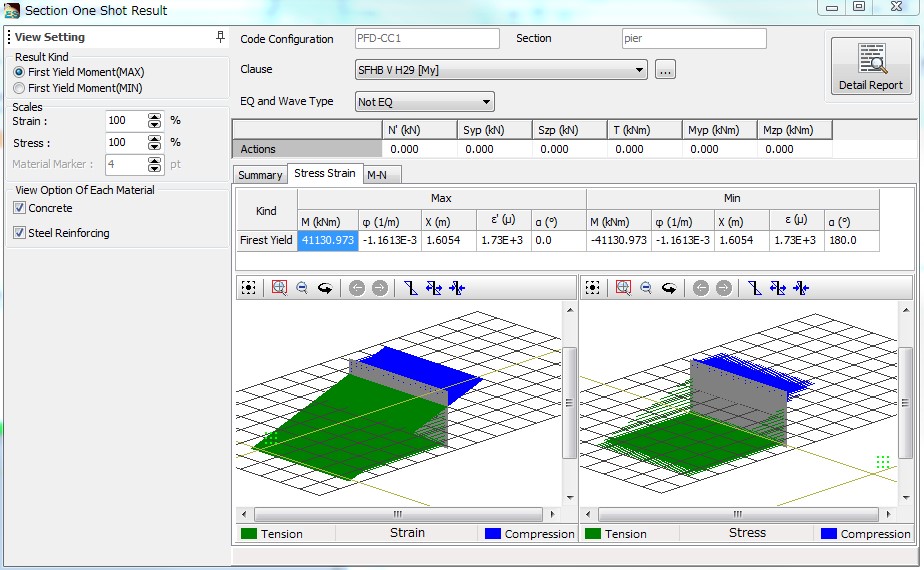

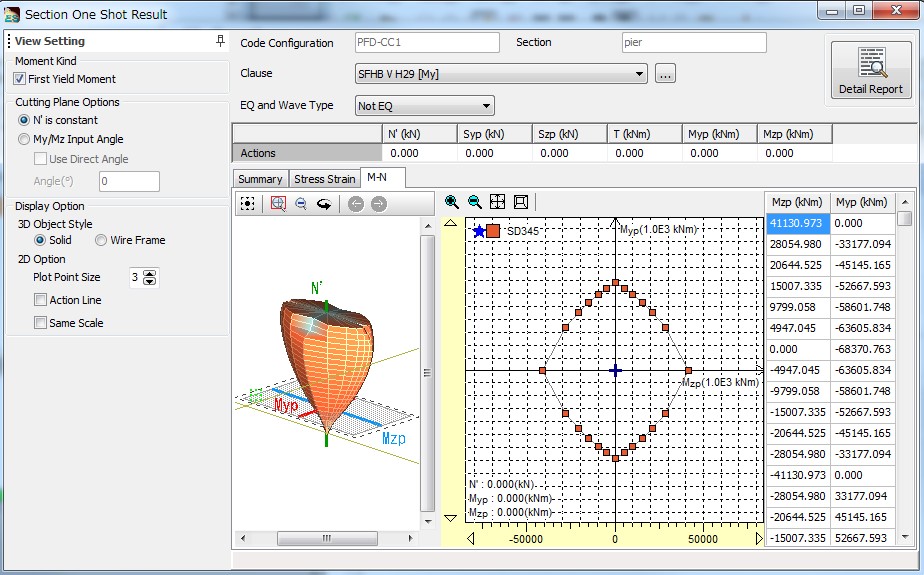

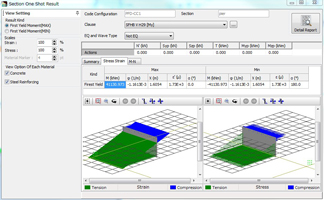

| Fig.1 Strain and stress | Fig.2 M-N interactive drawing (2D/3D) |
The following items are supported in the simple check.
Road related specifications before 2002- Bending stress check for RC material
- Shear stress check for RC material
- Bending strength check for RC material
- Shear strength check for RC material
- Bending strength check for steel pier
- Attachment stress
- Minimum number of rebar
Limit state design method related specifications
- Concrete standard in 1996 [Design edition]
- Concrete standard in 2002 [Structure valification]
- Concrete standard in 2007 [Design edition]
- Concrete standard in 2012 [Design edition]
- Railroad structure design, concrete structure (Oct 1999)
- Railroad structure design, concrete structure (April 2004)
Partial factor design method (2017)
- Bending stress check for RC/PC material
- Shear stress check for RC/PC material
- Bending strength check for RC/PC material
- Shear strength check for RC/PC material
- Bending strength check for steel pie
- Minimum number of rebar
