Recently, we have received the order of customization development based
on the diversification of construction method such as new method, and the
transition to performance checking design method for UC-1 series or other
design calculation software.
We showed some case studies of customized development service to help improve
your design work. Our customizing development program uses standard input/output
library of UC-1 series products. The standard library supports electronic
delivery standard and import/export function for each file. The softwares
which has the drawing generation function support the latest CAD drawing
standard and SXF. Additionally, as we develop based on UC-1 series program
such as FRAME, Section, Superstructure/Substructure work, and Foundation,
the customization development can be performed with a significant advantage
of using accumulated algorithm and software stability. Consequently, the
completed program will receive the advantage of product quality and cost
performance. We have a good track record of the products for other languages
and other country's design standard.
|Examples of customization development program
|Available for purchase
- Easy slab bridge and Easy rahmen bridge design
- PC well type pier design calculation
- Distribution basin earthquake resistant design calculation
- Micro pile(Foundation design calculation, Pier foundation design)
- Bridge check support system
- Pipe network design
|Unavailable for purchase
- PRC box culvert design calculation
- Rock fall prevention fence pier foundation
- Caisson type pile foundation -specially-shaped version
- Design calculation of rotating pier method
- Design calculation of connecting steel-pipe-sheet pile foundation
- Road traffic planning system
Maintenance support of UC-1 series is provided for the developed software,
it will be able to be upgraded in future. Needless to say, the existence
of design software makes the important role to settle the new method or
materials. The customized program can be sold via our sales network with
sales agreement contract. Forum8 provides efficient customizing development
service to meet the requirements in a variety of design situations.

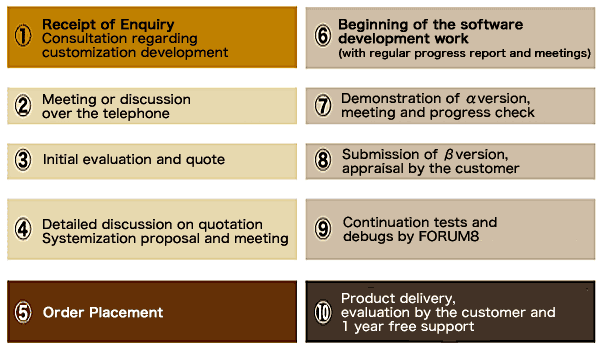

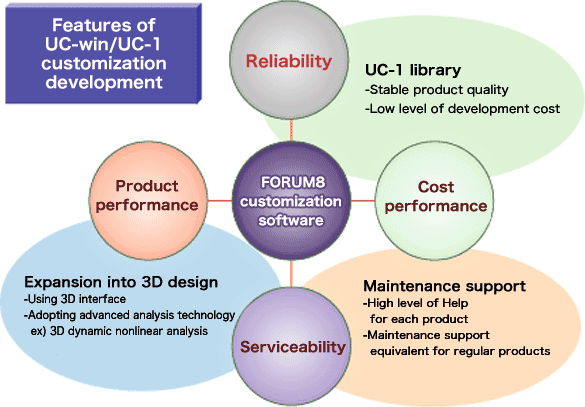

Advantage of using customization development service of Forum8
||Forum8 develops and markets the civil engineering design software, 3D analysis
software, and 3D VR simulation software as an independent software house.
Our registered users currently reach more than 12,000. Therefore, the reliable
and high quality library groups and a great deal of technical know-how
can be used for the parts of input/output and calculation for the developed
program. With advanced analysis and 3D interface, the developed program
can be expanded in future.
Example of using UC-1 library in customization development program
||The support is provided same as our products; free of cost for the 1st
year, purchased the support contract separately after that.
||With our products for concrete bridge or concrete construction (Superstructure
work:UC-BRIDGE, PC pier///Substructure work:Abutment, Pier///Geotechnical
work:BOX culvert design, Retaining wall design), the high compatibility
of interface improves comfort and efficiency of users.
||We are certain that we can provide the developed software as a strategic
tool to show the advanced information technology , and to position oneself
apart from the rest.
Examples of customization development service
Easy slab bridge and Easy rahmen bridge design program
The style of this bridge is evaluated with the adjustability to the medium-sized
bridges, and it has been attracted attention for its structural performance
and economic efficiency. We developed the design program in this style
by using the resources of our UC-1 series products.

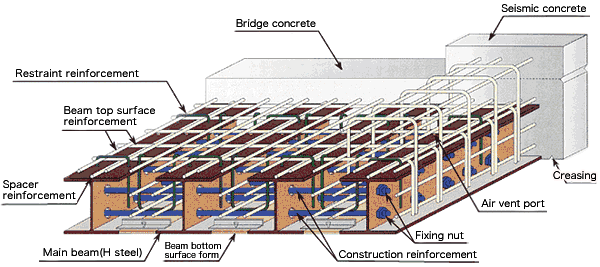

Structural drawing of Easy slab
- Interactive input style with interface of UC-1 products
- Analysis parts:
Easy slab:Grid analysis calculation
Easy rahmen bridge:FRAME analysis, earth retaining elasto-plastic analysis
- Result display:for detailed and overview design
- Adjunctive design:Shoe design, displacement limit design, overview of quantity
(2)Earth retaining elasto-plastic analysis
- Structural analysis of rahmen slab bridge is performed with elastic analysis
which considers the spring characteristics of geological condition. Structure
model serves rahmen model with the monolithic structure of superstructure
and substructure, and it is almost equivalent analysis model as the monolistic
analysis of both walls in our product, "Temporary sheathing work design".
Therefore, we customized the parts of earth retaining elastic analysis.
|Data creation of rahmen slab bridge
||Result of monolithic elastic analysis of superstructure and substructure
PC well type pier design calculation
This program allows to check PC well type pier and foundation with allowable
stress design method and seismic dynamic horizontal bearing capacity method.
Functions of bridge substructure and foundation (pier design, foundation
design calculation(caisson foundation)) made the development schedule shorten.
We tried to achieve efficient design flow for the customers.
||Check screen of PC steel rod arrangement
Distribution basin earthquake resistant design calculation
This program allows to perform design calculation of distribution basin
earthquake resistant for one or two basin structure. It supports seismic
coefficient method and seismic deformation method so that level 1 and 2
of earthquake can be considered. Standout function is that the bending
rigidity reduction considered M-É” of member was processed internally in
the calculation of level 2. We used our technical resources including bony
framework analysis, RC section calculation(allowance, limit ), analysis
considered nonlinearity of members.
|Main window(with post)
||Geological later check
The customer originally ordered the customized micropile for foundation
seismic strengthening, then we proposed to integrate micropile with our
products(foundation design calculation, pier foundation design), and they
purchased as a package product. We covered a variety of micropile method
by supporting three methods (ST micropile method, high strength micropile
method, torsion micropile method).
|Example of high strength micropile
||Input screen of pier head connection point
Pipe network design
This program is the analysis program of water and sewerage distribution
system. It allows to create the pipe network data by GUI operation, and
generate the drawings. We used the libraries accumulated by creating the
model in our products "Slope stability analysis" and geotechnical
analysis series "GeoFEAS2D" and "UWLC" for GUI operation. Additionally, our CAD library was used for drawings
to achieve the efficient development.
|Creation of pipe network data by GUI operation
||Creation of pipe network drawing
Road traffic planning system
This program was developed by representing the traffic network on the interface
recognized visually so that you can create, modify, edit the data efficiently.
It allows the creation and editing of data while checking the relevant
traffic by importing and analyzing the numerical information of traffic
- File(Import and export of link/node file)
- Edit and search function : Edit(Add, Divide, Merge) Search(for Node, Link)
- Display function(Information is displayed on drawing. Information table
can be displayed, scaled, and moved.)
- Setting(Display setting of color or font)
UC-win/Road Customized System
This service provides the customized system based on UC-win/Road function
including driving simulator, VR simulator, ITS simulator, walking simulator,
and GIS system. Examples of our customized system are shown as below.
(Tokai-Kanjo expressway VR simulator : 2002)
(Matsuyama rivers and national highway bureau : 2005)
|3D GIS disaster simulation system
(Road management technology center :2004-2005)
System development in research project
This example shows the system development in Ę3D operator support viewer£
research project. Completed image of construction robot and the information
by external sensor are compared. This system is assumed based on "UC-win/Road"
which can be interacted with operator.
Proposal of custom development service by using Framework
Forum8 currently adopts Framework to develop two products, "Engineer's Studio(R)" and "Road traffic planning system". Framework is the class
library where the object-oriented was further developed, and which calls
a variety of codes. This framework provides you a variety of advantage
for the customized development. We invite you to take advantage of our
- Framework allows to finish the customized development in shorter period.
- A variety kinds of GUI interface provides the simple operation .
- Ex) You can easily change the design condition data by clicking member
- 3D display makes great improvement of the display and operative performance.
- Menu tree display and calculation output can be used as before.
