Plug-in bundle specialized for autonomous driving simulation and ADAS fields
UC-win/Road
Autonomous Driving / ADAS Package
Initial Release : 2022.12.02
- USD35,000
Program Overview
Autonomous Driving Package is a bundle of UC-win/Road plug-ins useful for "autonomous driving simulation", "ADAS", and "sensor data simulation".
Transmits information about the vehicle in operation to outside and controls the vehicle according to external information.
Detects objects around the vehicle in operation and transmits the information
Reflects steering angle and accelerator/brake input/output values of the driving vehicle to the device
Send images in the format specified by the camera sensor. Compatible with blur and noise processing
Mutual conversion of course information with the vehicle motion calculation system
Functions and Features
Vehicle Control Plugin
-

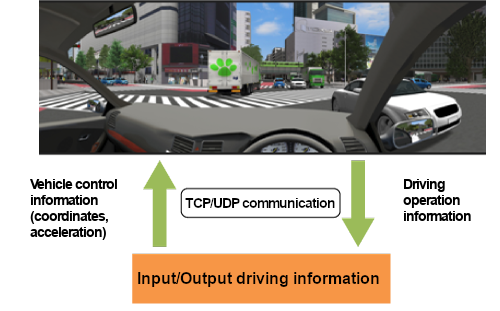

This plug-in works in conjunction with the Driving Data I/O Application. Data can be shared with the application via TCP and UDP communication.
It is possible to control the operating vehicle in UC-win/Road in conjunction with an external program. Information about the vehicle in operation can also be transmitted to external systems.

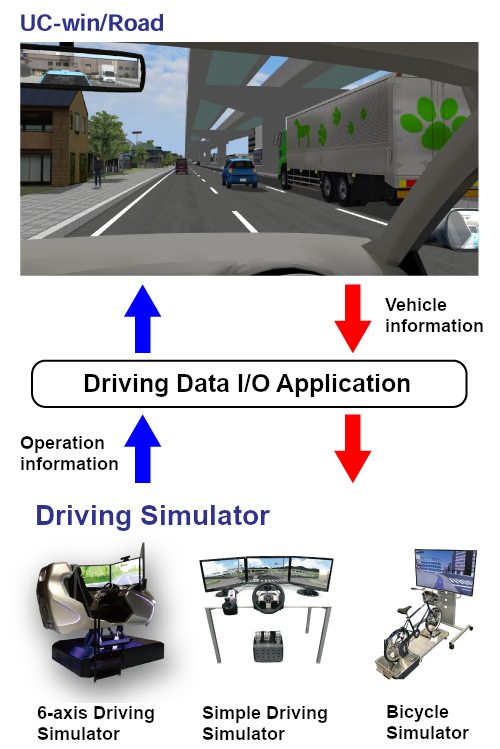

Driving Data I/O Application
-
- Transmits and receives driving operation information to/from UC-win/Road Vehicle Control Plug-in
- Links with operation devices
- Displays operation information
- Outputs log files of operation and incoming information
This plug-in supports the following functions.
It can be linked with various driving simulators and vehicle simulation software. So far, it was necessary to modify the UC-win/Road system, but now it can be linked by customizing the Driving Information I/O Application.
Vehicle Perimeter Detection Plug-in
-
This plug-in detects objects such as other vehicles and road signs around the vehicle in operation and transmits the information to external systems. Frame lines and specified information are displayed around the detected objects in the UC-win/Road. It includes the settings for detection range and conditions and a function for timing processing for sending detection results.
It can also display a variable on an object specified by a custom ID, and color changes (about 3 levels) by threshold values is also possible.
Camera Sensor Plug-in
-
With this plug-in, information captured by a sensor device attached to the driving vehicle in UC-win/Road can be transmitted via UDP communication.
It simulates a camera sensor used in autonomous driving and sends the simulation images in the bitmap format via UDP communication.
DS Course Converter Plug-in
-
Road centerlines or lane centerlines can be output from road data of UC-win/Road in the CSV format. By reading the data in other systems, roads of UC-win/Road can be reproduced.
Price
Product Price
-
Product
Product Configuration
Price
UC-win/Road Ultimate
+ Autonomous Driving / ADAS Package OptionUSD52,200 UC-win/Road
+ all plugins
+ Autonomous Driving / ADAS Package OptionUC-win/Road Driving Sim
+ Autonomous Driving / ADAS Package OptionUSD46,000 UC-win/Road
+ Driving Simulator Plugin and other plugins
+ Autonomous Driving / ADAS Package OptionUC-win/Road
Autonomous Driving / ADAS Package OptionUSD35,000 Option only >> Click here for the price of UC-win/Road
■Price of Floating License
Paying 40% of the product price allows anyone to use the product on any PC anywhere in the world.
Product
Price
UC-win/Road Autonomous Driving / ADAS Package Option USD14,000
Price of Subscription Service Contract
Price of Subscription Service Contract
-
■Support information
-Software upgrade -Technical inquiry (Email, Tel)
-Download service -Maintenance and update notifications via email
* We are sequentially making a transition from the maintenance-support service to [Subscription Service] from April 1, 2016 in order to enhance support for diverse product usage and to reduce license management cost.
Product Subscription cost
of first yearSubscription cost
of subsequent years
(annual cost)UC-win/Road Autonomous Driving / ADAS Package Option Subscription Free USD10,500 UC-win/Road Autonomous Driving / ADAS Package Option Subscription Floating USD14,700
Price of Rental License / Floating License
■Rental license : Short term licenses available at a low price
■Rental floating license : After web activation, anyone can use the products on any PC anywhere in the world.
■Rental access : You can increase the number of licenses you own and use these additional licenses for a specific period of time (1 month to 3 month) at your discretion. We will later send you an invoice based on your usage log. The advance application is 15% off of the regular rental license price. Please place an order from User information page.
*Rental / Floating Licenses were introduced on September 2007 to enhance user experience and convenience of our products.
*Duration of Rental / Floating Licenses cannot be changed after starting these services. Re-application is required to extend the rental and floating license duration.
Rental license / Rental floating license
-
■Rental License
Product 2 month 3 month 6 month UC-win/Road Autonomous Driving / ADAS Package Option USD15,050 USD17,850 USD22,050 ■Rental Floating License
Product 2 month 3 month 6 month UC-win/Road Autonomous Driving / ADAS Package Option USD25,550 USD30,450 USD37,450 Version Update History
Version Update History
-
UC-win/Road Autonomous Driving / ADAS Package Option Version Release Date Update Contents 1.0.0 22/12/02 New Release
