Simulation using the cooperation of a wheelchair and UC-win/Road

Wheelchair Simulator
UC-win/Road Driving Sim +
Wheelchair Simulator Plugin Option
From USD14,000

Wheelchair Simulator NEW!

The simulator is supposed to be a real wheelchair that does not move; a driver just sits in the simulator and drives the wheelchair within the VR environment projected through the monitor or Head Mounted Display (HMD). The simulator also has a function for evaluating driving skills.

Currently, UC-win/Road can simulate vehicles that travel on land, sea, and in the air. The behaviour of a VR model representing any one of these vehicles in UC-win/Road is either controlled by input devices (Joy Stick, steering wheel, etc.) or is based on a pre-defined 3D route (flight path).

To simulate the wheelchair operation, the vehicle simulation function of UC-win/Road’s function for vehicle simulation has been enhanced to enable wheelchairs to move freely even on slopes and uneven grounds including sidewalks and roads and to drive over small bumps and obstacles, for example, driving over a sidewalk from a carriageway.

In addition, in the wheelchair simulation, users can drive a VR model representing a particular wheelchair by using a keyboard or gamepad, or by sitting on an actual wheelchair (WHILL Model CR in the image) and operating the joystick attached to it. Please refer to the system overview for more information.

When a driving simulation is finished, a text file with summarized simulation results including simulation time, distance traveled, etc. and simulation records such as positions of the wheelchair and operation data collected from the joystick is generated, which can then be utilized for further analysis (driving performance evaluation).

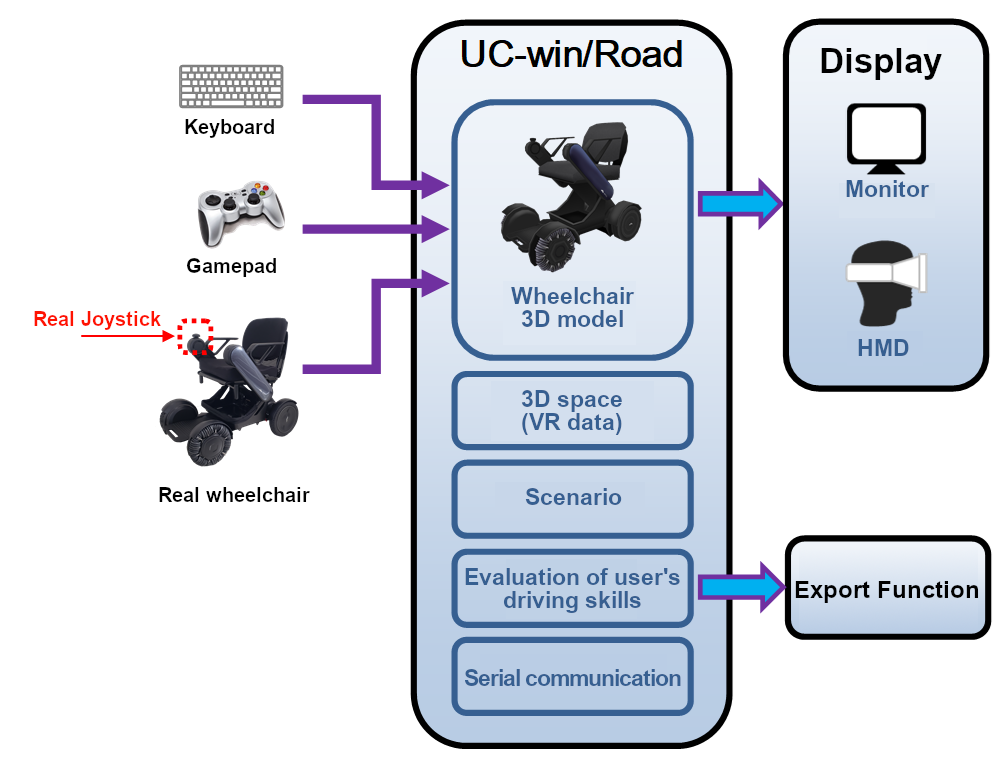

▲System overview

Related Information

◆New Product Information
Wheelchair Simulator(Up&Coming’21 Spring issue)

Customized system: Wheelchair Simulator (Department of Mechanical Engineering, Faculty of Engineering Science, Kansai University)

The VR environment of UC-win/Road is used for the video display part of the wheelchair simulator which is the research development result of Professor Jun Kurata, Kansai University Science and Technology Department.

The wheelchair simulator hardware is equipped with wheels with torque sensors that drive both wheels separately, and the model of speed and road surface resistance are used as a movement model (dynamics) of a wheelchair. UC-win/Road is utilized for the display portion. Furthermore, whether it can move inside of VR space is verified by reading the data of the actual measurement from a wheelchair simulator to UC-win/Road.

The system permits even safer use of electric wheelchairs, taking into account the degree and location of physical impairment of the individual and recognizing user risk.

▲Configuration image of wheelchair simulator

▲Configuration diagram and flow of cooperation part
with wheelchair simulator hardware

▲Example of wheelchair simulation using
UC-win/Road MD3 characters


Product Price


Product Name


Wheelchair Simulator USD10,800


Product Name


Product Configuration

UC-win/Road Ultimate
+ Wheelchair Simulator Plugin Option
USD20,200 UC-win/Road
+ All plugins
+ Wheelchair Simulator Plugin Option
UC-win/Road Driving Sim
+ Wheelchair Simulator Plugin Option
USD14,000 UC-win/Road
+ Drive Simulation Plugin and other plugins
+Wheelchair Simulator Plugin Option
UC-win/Road Wheelchair Simulator Plugin Option USD3,000 Plugin only

>> Click here for the price of UC-win/Road

■Price of Floating License

Paying 40% of the product price allows anyone to use the product on any PC anywhere in the world.

Product Name


Wheelchair Simulator Plugin Option USD1,200

>>Information of license type

Price of Subscription Service Contract

Price of Subscription Service Contract

■Support information
-Software upgrade   -Technical inquiry (Email, Tel)
-Download service   -Maintenance and update notifications via email

* We are sequentially making a transition from the maintenance-support service to [Subscription Service] from April 1, 2016 in order to enhance support for diverse product usage and to reduce license management cost.

Product Subscription cost
of first year
Subscription cost
of subsequent years
(annual cost)
Wheelchair Simulator Plugin Option Free USD1,200
Wheelchair Simulator Plugin Option Floating USD1,680

Price of Rental License / Floating License

■Rental license : Short term licenses available at a low price

■Rental floating license : After web activation, anyone can use the products on any PC anywhere in the world.

■Rental access : You can increase the number of licenses you own and use these additional licenses for a specific period of time (1 month to 3 month) at your discretion. We will later send you an invoice based on your usage log. The advance application is 15% off of the regular rental license price. Please place an order from User information page.

*Rental / Floating Licenses were introduced on September 2007 to enhance user experience and convenience of our products.

*Duration of Rental / Floating Licenses cannot be changed after starting these services. Re-application is required to extend the rental and floating license duration.

Rental license / Rental floating license

■Rental License

Product 2 month 3 month 6 month
Wheelchair Simulator Plugin Option USD1,350 USD1,590 USD1,950

■Rental Floating License

Product Name 2 month 3 month 6 month
Wheelchair Simulator Plugin Option USD2,250 USD2,670 USD3,300
