  UC-win/Road Debris Flow Plug-in Ver.2
    UC-win/Road Debris Flow Plug-in
    UC
-1 Debris-Avalanche Simulation
US$3,360
UC-win/Road Plug-in which visualize Debris-Avalanche simulation and analysis results

Released : '12.12.13 / Latest Ver.: '14.10.23
UC-win/Road Product Information
UC-win/Road Product Information
Product detailsPrice / Purchase

  Program Overview
ライン
Landslide and debris-avalanche occurs frequently in Japan due to its weak geological formations and topography not to mention its steepness. Debris-avalanche does more damage to the people than it does to the land itself. In fact, the scale of damage it can cause is extremely large.

One of the effective hard measures to prevent or mitigate the damage that a debris-avalanche can cause is building a check dam. The soft measures are establishing means of information transmission or an organized warning and evacuation system that provides simultaneous announcement to all the residents at risk telling them to evacuate immediately. Other soft measures include regulating the relocation of houses to the areas prone to the disaster and relocating the existing houses to a safer place.

The UC-win/Road Debris-Avalanche Simulation plug-in links the UC-1 Debris-Avalanche Simulation, a solution with an ability to run a debris-avalanche analysis through a series of process, and 3D Visual Interactive Simulation & Modeling software UC-win/Road for creating the input data to be analyzed and visualizing the analysis results within the UC-win/Road 3D VR environment. The UC-1 Debris-Avalanche Simulation uses "Debris-Avalanche Simulator (Kanako)" developed in the Graduate School of Agriculture, Kyoto University, as a solver. FORUM8 has built the robust function that pre-processes and post-processes the data to be analyzed so that a debris-avalanche analysis can be run effectively in a series of process while incorporating the solver, and that' s how this intelligent solution named UC-1 Debris-Avalanche Simulation came to be. The structure and work flow of the system are illustrated below.

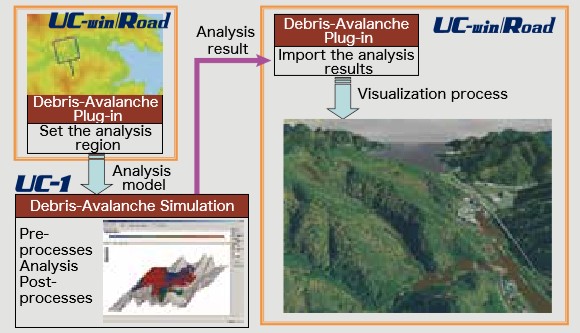

Flow of the debris flow simulation
  Related Information
New Product Introduction

  UC-win/Road Debris-Avalanche Simulation plug-in
ライン
Overview

This plugin enables the export of 1 dimensional and 2 dimensional region (terrain) subject to an analysis by the UC-1 Debris-Avalanche Simulation, from the UC-win/Road model. The UC-1 Debris-Avalanche Simulation imports this area for the analysis, and from there on the user can assign several critical conditions to allow simulation to take place.

Furthermore, the result analyzed in the aforementioned software can be imported to UC-win/Road using this plug-in for a time-history representation of the approaching debris-avalanche within the 3D VR environment allowing users to visually confirm how sand, mud, and debris travel over time. This system that accurately visualizes the debris-avalanche is not only an effective tool for validating the proposed measures for preventing or mitigating the damage likely to be inflicted by a debris-avalanche, but is also a powerful tool capable of building a risk awareness model that would help the residents to better understand the risk and the actual situation in an event of a large debris-avalanche.


Feature

This product runs as a plug-in of UC-win/Road and is equipped with the 2 functions below that have been developed by using the engine of mudslide simulator "Kanako" as a reference.

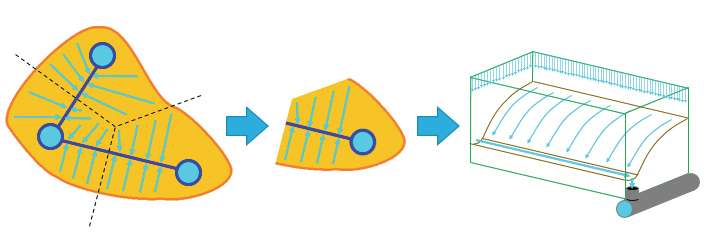

Auto calculation of river

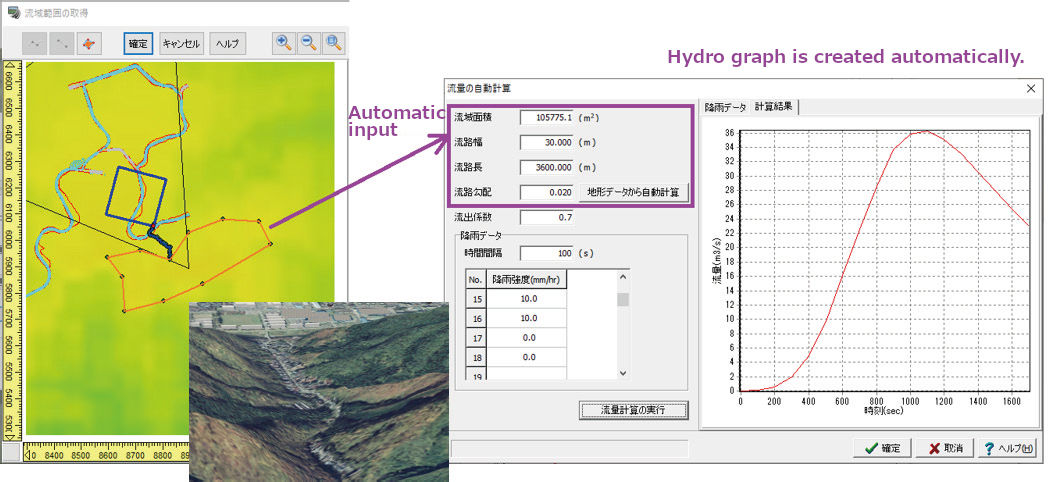

As for model creations of the debris avalanche (Kanako), it is necessary to enter the river where debris avalanches flow in, and a function to automatically calculate most suitable river shape from the UC-win/Road terrain data has been added in this revision. The model can now be created almost automatically.

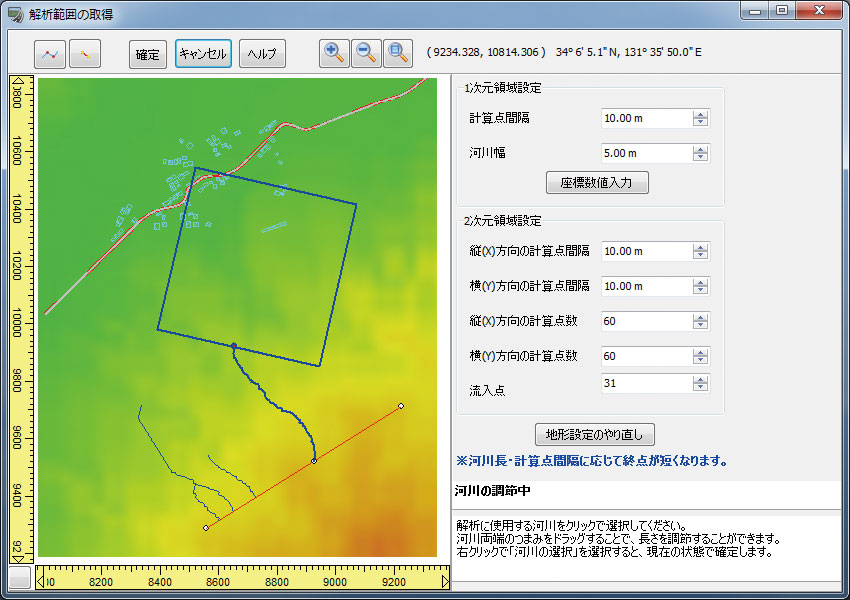

Getting river shapes from the UC-win/Road terrain data
High speed drawing support
Drawing speed has been greatly improved in this version. This improvement made it easier to perform a simulation in parallel to rain or drive simulation. For reference, drawing speed became about three times faster for our simulation data for 30 minutes.
Enhancing of drawing speed
makes simulations more efficient.
Entering of river shape by keyboard
River shape can now be decided by using a keyboard. A paste function is also available so that you can paste information from documents. Input of degrees, minutes, and seconds are also supported.

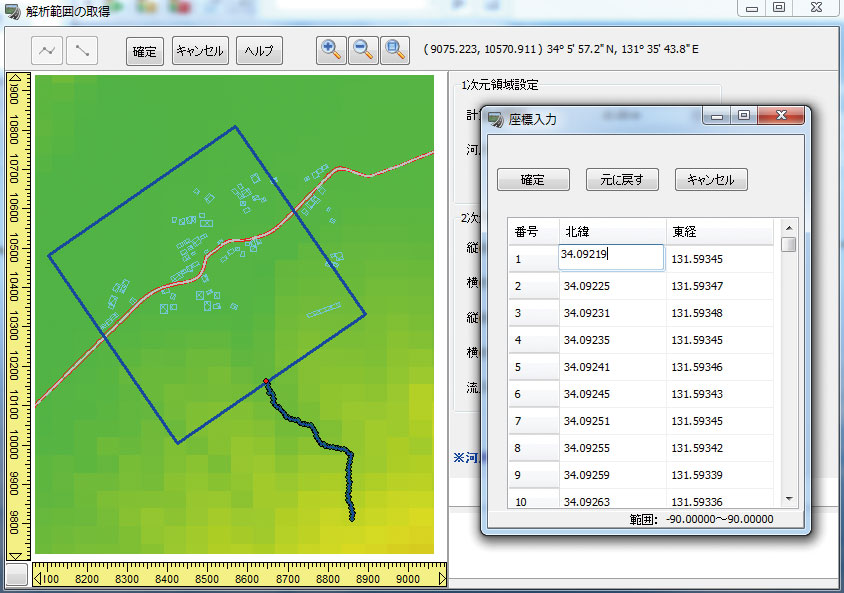

Fig.4 Editing river shape with keyboard
Addition of sound expressions
A function to play sounds in accordance with the debris flow simulation has been added, supporting the wav file format. Sound makes simulations more real.
Fig.5 Sounds selected in the setting screen are played.

Export function
The region that you wish to analyze can be specified by simply clicking the said region within the UC-win/Road terrain data.

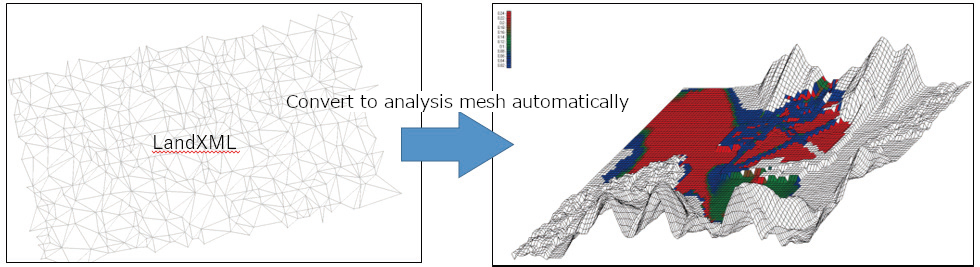

The terrain data input process has been automated so that time and effort can be greatly saved.
Visualization function
The result analyzed via Debris-Avalanche Simulator can be visualized using UC-win/Road.
The flow of debris-avalanche and the effected region can be visually understood, making the system a great presentation tool.
Exporting data Visualizing data

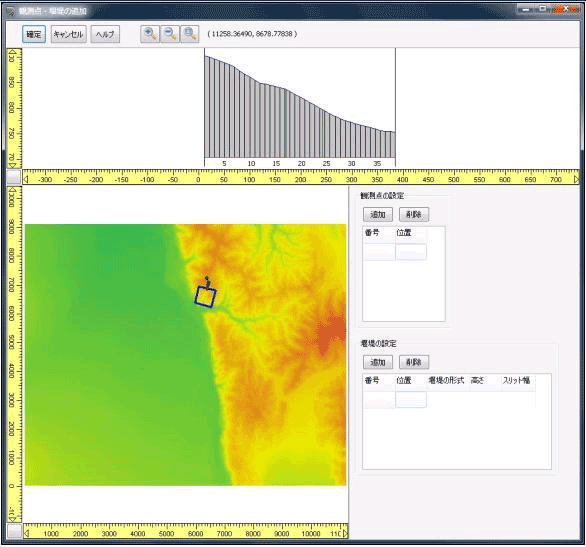

Obtaining the analyzed region from UC-win/Road Adding observation points and enclosing bund

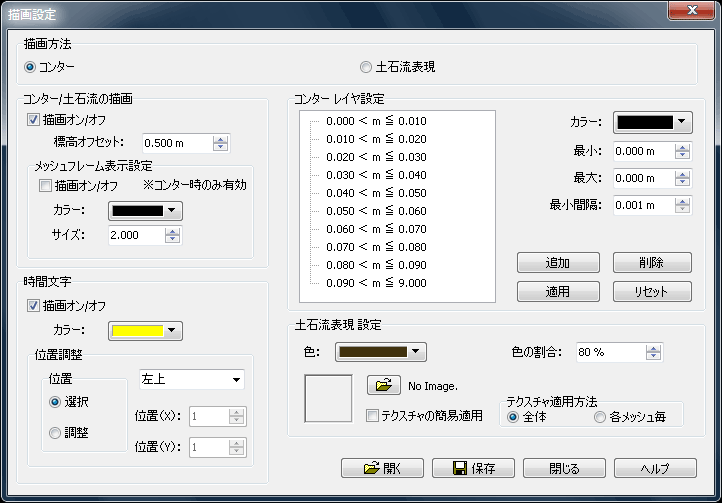

Drawing option

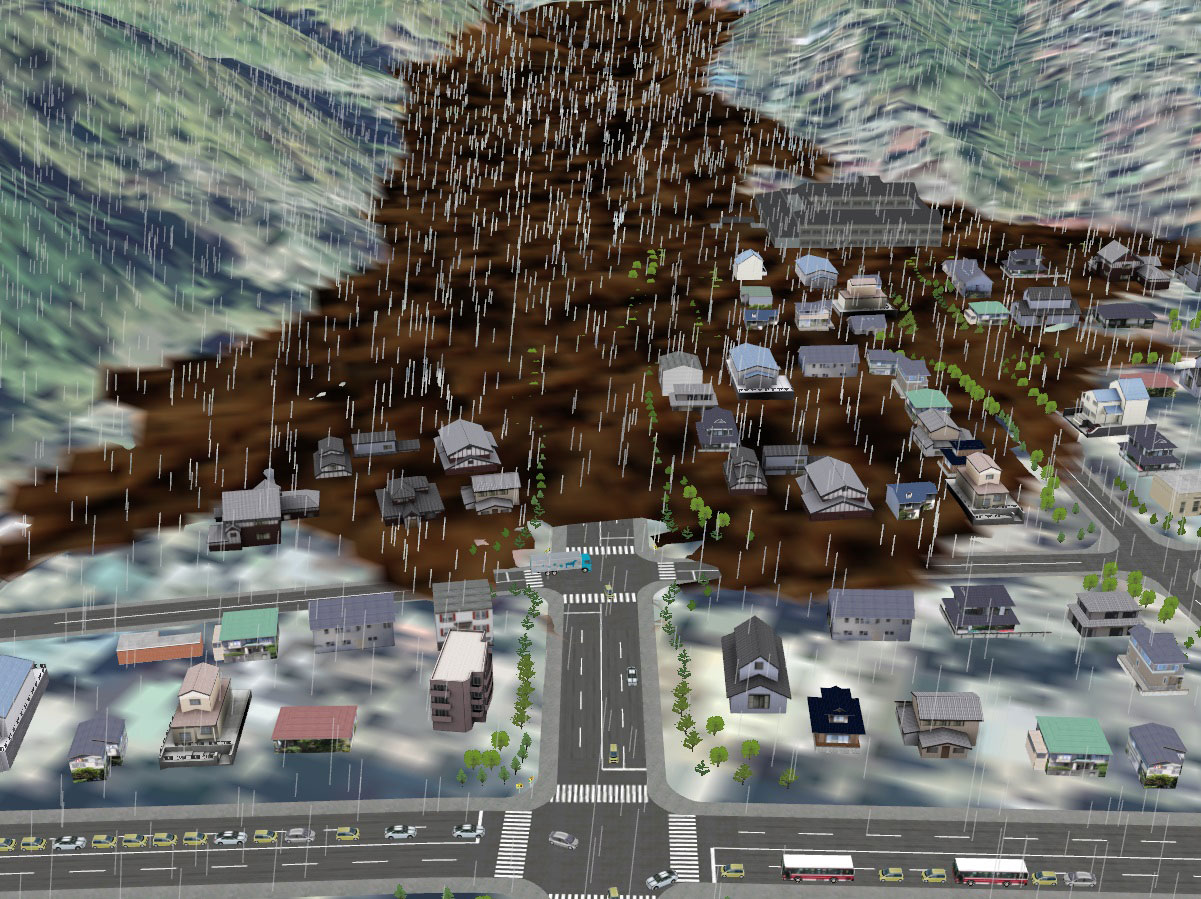

Visualizing the results of Debris-Avalanche analysis
(Left: Counter expression, Right: Approaching mudslide)

    UC-1 Debris-Avalanche Simulation
ライン
Overview

This program adopts the "Debris-Avalanche Simulator (Kanako)" developed in the Graduate School of Agriculture, Kyoto University, as a solver, and has the ability to run a debris-avalanche analysis effectively in a series of process thanks to pre-processing and post-processing features built into the program by FORUM8.

Feature

In order to take into account the effect of prediction on the damage that a debris-avalanche can do as well as the effect of physical barriers such as check dams have on the debris-avalanche, the calculation must be done on both the steep region (1 dimensional region) where the debris-avalanche originates and propagates and the low-angle alluvial fan (2 dimensional region) where the debris tend to overflow or pile up putting people and their houses within the area that risk. The "Debris-Avalanche Simulator (Kanako)", a solver that is used in this simulation, adopts the coupled model. How it works is that the steep region is calculated using the 1 dimensional model and the low-angle alluvial fan is calculated using the 2 dimensional model, and the result of each calculation interacts with one another at the entrance to the valley which is considered the boundary of the 2 region, allowing the system to integrate each calculation result in order to find the overall effect of the debris-avalanche prediction and measures.

The figure below is a window from the "Debris-Avalanche Simulator (Kanako)" showing the analysis result, which can also be displayed for visual confirmation through the UC-1 Debris-Avalanche Simulation.


画像をクリックすると大きな画像が表示されます。

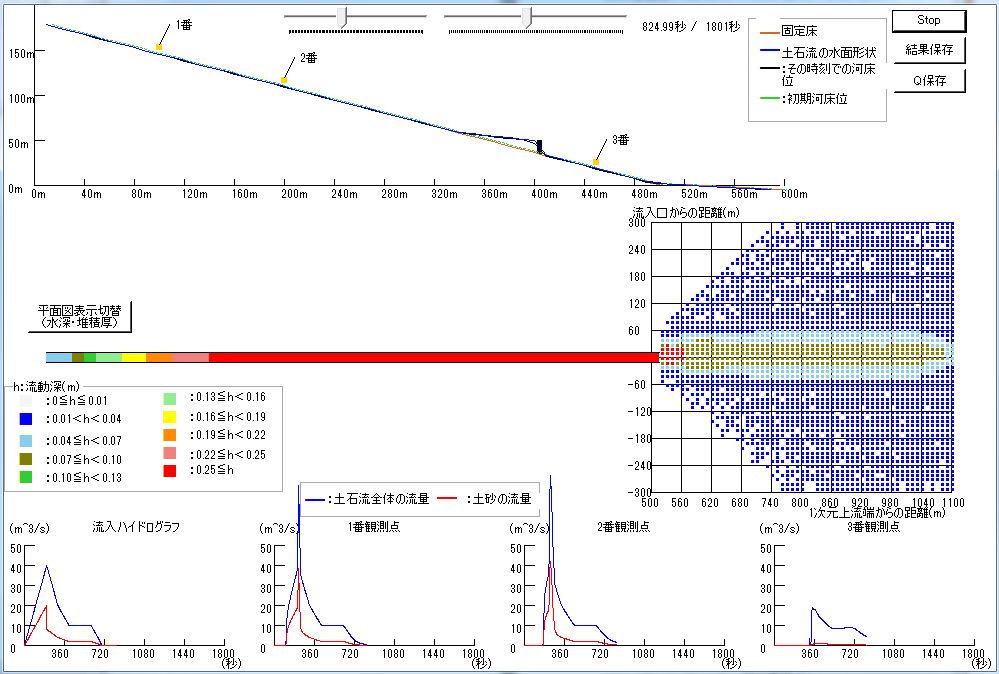

Screen for 2D terrain via Kanako (Water depth is displayed.)

For analyzed results, the following items can be visually confirmed.
  1. Water surface/ river-bed form
  2. Flow depth
  3. Deposition thickness
  4. Hydrograph of observation point

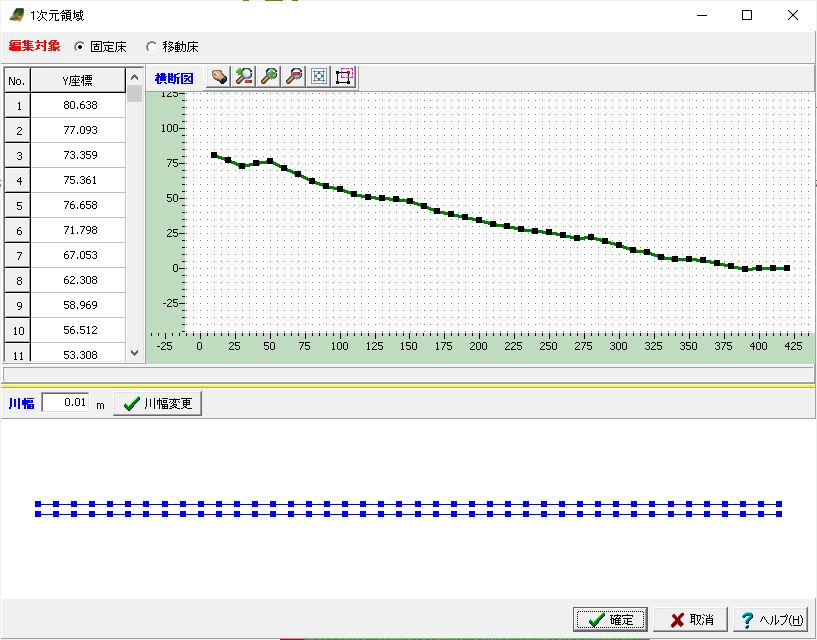

Main screen One-dimensional domain

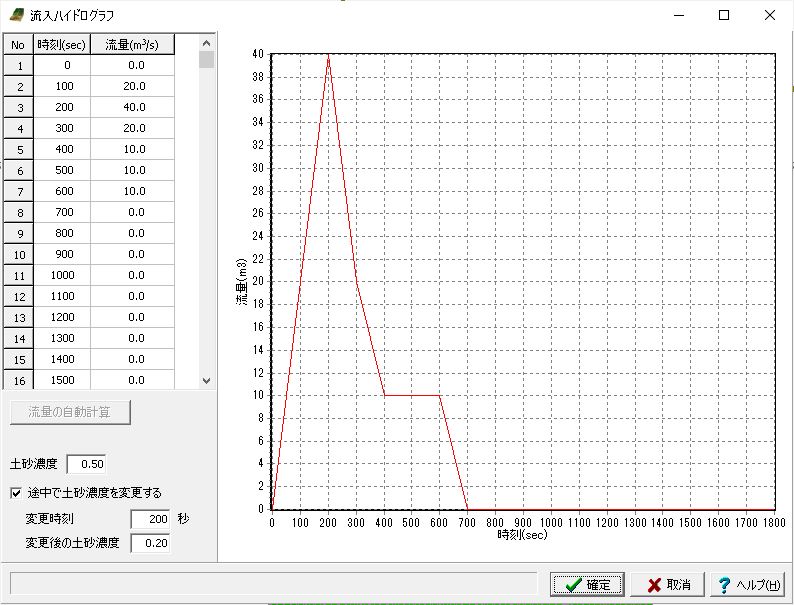

Two-dimensional domain Hydrograph of inflow
Analysis result of flow depth


 Applicable criteria and reference

  • Takashi Wada, Yoshifumi Satofuka, Takahisa Mizuyama. Integration of 1- and 2- dimensional models for debris flow simulation. In Journal of the Japan Society of Erosion Control Engineering Vol.61, No.2, p.36-40, 2008.
  • Kana Nakatani, Yoshifumi Satofuka, Takahisa Mizuyama. Development of "kanako Ver.1.10", a wide use one dimensional debris flow simulator equipped with GUI. In journal of the Japan Society of Erosion Control Engineering Vol.61, No.2, p.41-46, 2008.
  • Kana Nakatani, Takashi Wada, Yoshifumi Satofuka, Takahisa Mizuyama. DEVELOPMENT OF AN USER FRIENDLY DEBRIS FLOW SIMULATOR EQUIPPED WITH GUI. In Proceedings of the 4th symposium on sediment disasters, p.149-154,2008.
  • Yoshifumi Satofuka, Takahisa Mizuyama. Numerical simulation on a debris flow in a mountainous river with a Sabo dam. In journal of the Japan Society of Erosion Control Engineering Vol.58, No.1, p.14-19, 2005.
